【原创教程】某企业加固dex vmp简单分析

秋菱

前言
本人小白一枚，想尝试学习一些加固，在身边朋友的推荐下选择了这个壳子.恰巧最近论坛上也有很多大佬发布了自己的分析贴（比如乐子人大佬的帖子），只是复现下来后发现后续的dex vmp相关帖子比较少（很不幸只找到了爱吃菠菜大佬的这篇帖子，不过因为年代久远甚至指令结构都不同了），于是写篇帖子记录一下.
新人发帖，如有错误还望大佬指出.

帖子使用的样本不方便说出来，不过是今年的.（因为据说这个样本保护项开得多）

有人让我设置点隐藏内容提升热度，所以我就设置了
Java层特征

可以看到被vmp保护的方法调用了Lcom/fort/andjni/JniLib;类的一个native方法

JniLib类中有很多种不同的native函数，显然是通过不同的函数签名来处理不同返回值的跳板函数. 既然这个类加载了libdexjni.so，那么这些native函数大概率就是被这个so注册的.

Native层初探
通过BinaryNinja加载so（这里把so基址设为了0x12000000），尝试在函数表中搜索Java_来定位，发现没有结果.
扫了一眼导出表

虽然有些明显的名称混淆，但JNI_OnLoad这些关键函数还在，导出表应该是没有被保护的.
既然静态注册搜不到，那么这些native函数必然是动态注册的了.
直接来到JNI_OnLoad：

发现函数不可解析，应该是被保护了.
往上查找.init.array：



对应的地址完全是空的，那么只可能是在更早执行的.init进行解密了.
先从dynamic里找到init地址



sub_125617dc分配了一块内存并复制了arg2的数据，数据大小被存储在了arg1 + 0x28.
而sub_1256150c主要是进行了数据解压（疑似还有其他操作，但我这个样本并没有执行到，就没去分析）：

解压算法是nrv2d，以上数据均来自init函数最开始的参数0x12561b48：

具体逻辑搞清楚了，修复就简单了.可选择：
1.直接使用支持nrv2d的库对0x120096d8处大小0x33dfd的数据进行解压；
2.在init函数运行完后直接dump下0x120096d8处大小0x7e500的数据.
得到解压数据后直接塞回so文件对应位置即可.

这里需要补充一段，完成这步之后BinaryNinja已经可以正常解析函数了，但是后面在使用ida分析so时发现虽然导入表和导出表正确，但ida未能将符号对应的函数解析完整：

简单分析发现这是因为这个so的section被动了手脚：

节中将一个很大的区域标记成SHT_NOBITS扰乱了ida的分析，只需把type改成SHT_NULL(0)或者SHT_PROGBITS(1)即可使ida正常解析.

虚拟机入口分析
解压数据回填后，JNI_OnLoad已经可以正常反编译了，映入眼帘的便是三个函数调用.

挨个翻了一下，发现前两个函数都有很明显的控制流：

而第三个函数看上去非常清晰，并且一眼就能看到很多关键数据（为了方便直观这里稍微分析了一下）：

既然前两个函数不太好看，那么就先分析第三个函数好了.

这个函数很简单，首先sub_12010028初始化了一些全局对象：

初始化完成后就注册了JniLib类的native函数：

既然要找的函数已经在这了，不妨直接进去看看吧：

sub_12017adc就是虚拟机的入口了，这里命名为vm_entrance.
由上图不难看出，这个函数的签名大概是(JNIEnv* env, jobjectArray args, void* result)
到了这里，先回顾一下函数的入参：

jobjectArray第0位是jclass，若为实例方法则第1位是实例的jobject，最后一位jint是vm函数的idx.

入口函数先获取了jobjectArray最后一位的Integer，然后调用了intValue函数读到jint传给j__lSSO05lI$I5IllOl_0lS$_lllIII__l$IOlI55$O550IS__lS5$：

而这个函数通过vm_idx去查了表data_1255ff48，因此这个表里一定存储着所有vm方法的数据.
交叉引用可以看到另一个函数对这个表进行了很多操作，应该就是初始化了：

至于这个函数，我们在上面的流程里其实已经见过了，正是JNI_OnLoad调用的第一个函数.
既然终究是躲不过的话，就只好顶着控制流简单看一下喽：

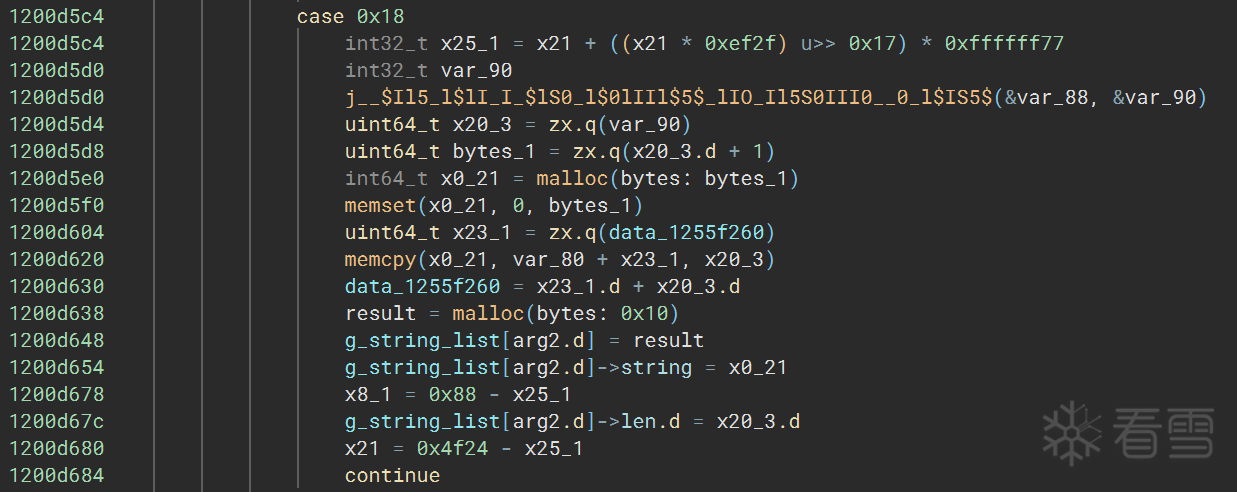

这个表里的结构体大小是0x28，通过一些函数读取数据，读取格式是MessagePack：

这里偷懒用frida在这个函数初始化完后去遍历表data_1255ff48（这里只处理了libDexHelper.so的检测，libdexjni.so应该是没有检测的），根据打印出的数据，大概猜测结构体结构：

1. struct method_info __packed

2. {

3.     uint32_t idx;

4.     uint32_t code_item_size;

5.     void* code_item;

6.     uint32_t reg_count;

7.     uint32_t ins;

8.     uint32_t outs;

9.     uint32_t is_static;//这个没去验证，纯经验猜测

10.     char* shorty;

11. };

复制代码

*注：这里的code_item是我先入为主瞎取的名字，并不是真正的标准code_item，因为这个vmp的字节码很像code_item的结构，具体长这样：

而code_item_size则是这段字节码数据的size.
后面会对其进行详细分析，这个命名我感觉还是比较贴合的，就是有点容易混淆，因此提一嘴.

重新回到vm_entrance函数，可以看到在栈上重新排了一个结构体：


最终传入了函数sub_12018544.
sub_12018544大概扫了眼，应该是整理vm方法的参数，给包装类拆箱：

这里创建了一个大小0x48的结构体，与寄存器有关，偏移0x8处的列表用于存储寄存器


最终来到函数j__lIl_0ll5OIlIlISl00lI_lI5lIll$I$IIlIl00I$lIIIl5S0S5$

跳到这个函数后binaryninja就有点不好使了，加载了半天也没加载好，控制流混淆得很严重：

并且函数体量奇大，根据以上种种，不难猜到这个就是解释器函数了.
面对这一望无际的工作量，死磕明显不太现实.
尝试过写反混淆插件，但只能处理些简单的，效果不尽人意，若要兼容更多情况，插件工程量也相当大.
反混淆无果后，决定依靠trace. 试了下frida trace感觉不太稳定，经常会闪退，最后选择了unidbg trace.

虚拟机解释器分析
简单看了一下，这个so的依赖相当少，甚至没有对libDexHepler.so的依赖：

因此unidbg应该不难运行起来，事实也的确如此：

1. JNIEnv->FindClass([Z) was called from RWX@0x120170e4[libdexjni.so]0x170e4

2. JNIEnv->NewGlobalRef(class [Z) was called from RWX@0x120170f8[libdexjni.so]0x170f8

3. JNIEnv->FindClass([B) was called from RWX@0x12014e44[libdexjni.so]0x14e44

4. JNIEnv->NewGlobalRef(class [B) was called from RWX@0x12014e58[libdexjni.so]0x14e58

5. JNIEnv->FindClass([S) was called from RWX@0x1201503c[libdexjni.so]0x1503c

6. JNIEnv->NewGlobalRef(class [S) was called from RWX@0x12015050[libdexjni.so]0x15050

7. JNIEnv->FindClass([C) was called from RWX@0x12014000[libdexjni.so]0x14000

8. JNIEnv->NewGlobalRef(class [C) was called from RWX@0x12014014[libdexjni.so]0x14014

9. JNIEnv->FindClass([I) was called from RWX@0x12010320[libdexjni.so]0x10320

10. JNIEnv->NewGlobalRef(class [I) was called from RWX@0x12010334[libdexjni.so]0x10334

11. JNIEnv->FindClass([J) was called from RWX@0x12010628[libdexjni.so]0x10628

12. JNIEnv->NewGlobalRef(class [J) was called from RWX@0x1201063c[libdexjni.so]0x1063c

13. JNIEnv->FindClass([F) was called from RWX@0x12010494[libdexjni.so]0x10494

14. JNIEnv->NewGlobalRef(class [F) was called from RWX@0x120104a8[libdexjni.so]0x104a8

15. JNIEnv->FindClass([D) was called from RWX@0x120112b4[libdexjni.so]0x112b4

16. JNIEnv->NewGlobalRef(class [D) was called from RWX@0x120112c8[libdexjni.so]0x112c8

17. JNIEnv->FindClass(java/lang/Class) was called from RWX@0x120112f8[libdexjni.so]0x112f8

18. JNIEnv->NewGlobalRef(class java/lang/Class) was called from RWX@0x1201130c[libdexjni.so]0x1130c

19. JNIEnv->FindClass(java/lang/Object) was called from RWX@0x12010574[libdexjni.so]0x10574

20. JNIEnv->NewGlobalRef(class java/lang/Object) was called from RWX@0x12010588[libdexjni.so]0x10588

21. JNIEnv->FindClass(java/lang/reflect/Field) was called from RWX@0x120105e4[libdexjni.so]0x105e4

22. JNIEnv->NewGlobalRef(class java/lang/reflect/Field) was called from RWX@0x120105f8[libdexjni.so]0x105f8

23. JNIEnv->FindClass(java/lang/String) was called from RWX@0x12015fb8[libdexjni.so]0x15fb8

24. JNIEnv->NewGlobalRef(class java/lang/String) was called from RWX@0x12015fcc[libdexjni.so]0x15fcc

25. JNIEnv->FindClass(java/lang/reflect/Proxy) was called from RWX@0x12015d14[libdexjni.so]0x15d14

26. JNIEnv->NewGlobalRef(class java/lang/reflect/Proxy) was called from RWX@0x12015d28[libdexjni.so]0x15d28

27. JNIEnv->FindClass(java/lang/reflect/AccessibleObject) was called from RWX@0x120100d4[libdexjni.so]0x100d4

28. JNIEnv->NewGlobalRef(class java/lang/reflect/AccessibleObject) was called from RWX@0x120100e8[libdexjni.so]0x100e8

29. JNIEnv->FindClass(com/fort/andjni/JniLib) was called from RWX@0x12010734[libdexjni.so]0x10734

30. JNIEnv->NewGlobalRef(class com/fort/andjni/JniLib) was called from RWX@0x12010748[libdexjni.so]0x10748

31. JNIEnv->FindClass(java/lang/Boolean) was called from RWX@0x12014f24[libdexjni.so]0x14f24

32. JNIEnv->NewGlobalRef(class java/lang/Boolean) was called from RWX@0x12014f38[libdexjni.so]0x14f38

33. JNIEnv->FindClass(java/lang/Byte) was called from RWX@0x12014ea0[libdexjni.so]0x14ea0

34. JNIEnv->NewGlobalRef(class java/lang/Byte) was called from RWX@0x12014eb4[libdexjni.so]0x14eb4

35. JNIEnv->FindClass(java/lang/Character) was called from RWX@0x12014dd0[libdexjni.so]0x14dd0

36. JNIEnv->NewGlobalRef(class java/lang/Character) was called from RWX@0x12014de4[libdexjni.so]0x14de4

37. JNIEnv->FindClass(java/lang/Short) was called from RWX@0x1201428c[libdexjni.so]0x1428c

38. JNIEnv->NewGlobalRef(class java/lang/Short) was called from RWX@0x120142a0[libdexjni.so]0x142a0

39. JNIEnv->FindClass(java/lang/Integer) was called from RWX@0x120106a8[libdexjni.so]0x106a8

40. JNIEnv->NewGlobalRef(class java/lang/Integer) was called from RWX@0x120106bc[libdexjni.so]0x106bc

41. JNIEnv->FindClass(java/lang/Long) was called from RWX@0x120107c8[libdexjni.so]0x107c8

42. JNIEnv->NewGlobalRef(class java/lang/Long) was called from RWX@0x120107dc[libdexjni.so]0x107dc

43. JNIEnv->FindClass(java/lang/Float) was called from RWX@0x12010364[libdexjni.so]0x10364

44. JNIEnv->NewGlobalRef(class java/lang/Float) was called from RWX@0x12010378[libdexjni.so]0x10378

45. JNIEnv->FindClass(java/lang/Double) was called from RWX@0x12015f4c[libdexjni.so]0x15f4c

46. JNIEnv->NewGlobalRef(class java/lang/Double) was called from RWX@0x12015f60[libdexjni.so]0x15f60

47. JNIEnv->FindClass(java/lang/AbstractMethodError) was called from RWX@0x1201357c[libdexjni.so]0x1357c

48. JNIEnv->NewGlobalRef(class java/lang/AbstractMethodError) was called from RWX@0x12013590[libdexjni.so]0x13590

49. JNIEnv->FindClass(java/lang/ArithmeticException) was called from RWX@0x120170a0[libdexjni.so]0x170a0

50. JNIEnv->NewGlobalRef(class java/lang/ArithmeticException) was called from RWX@0x120170b4[libdexjni.so]0x170b4

51. JNIEnv->FindClass(java/lang/ArrayIndexOutOfBoundsException) was called from RWX@0x120171c8[libdexjni.so]0x171c8

52. JNIEnv->NewGlobalRef(class java/lang/ArrayIndexOutOfBoundsException) was called from RWX@0x120171dc[libdexjni.so]0x171dc

53. JNIEnv->FindClass(java/lang/ArrayStoreException) was called from RWX@0x12017128[libdexjni.so]0x17128

54. JNIEnv->NewGlobalRef(class java/lang/ArrayStoreException) was called from RWX@0x1201713c[libdexjni.so]0x1713c

55. JNIEnv->FindClass(java/lang/ClassCastException) was called from RWX@0x12015d88[libdexjni.so]0x15d88

56. JNIEnv->NewGlobalRef(class java/lang/ClassCastException) was called from RWX@0x12015d9c[libdexjni.so]0x15d9c

57. JNIEnv->FindClass(java/lang/ClassCircularityError) was called from RWX@0x120101e0[libdexjni.so]0x101e0

58. JNIEnv->NewGlobalRef(class java/lang/ClassCircularityError) was called from RWX@0x120101f4[libdexjni.so]0x101f4

59. JNIEnv->FindClass(java/lang/ClassNotFoundException) was called from RWX@0x12011360[libdexjni.so]0x11360

60. JNIEnv->NewGlobalRef(class java/lang/ClassNotFoundException) was called from RWX@0x12011374[libdexjni.so]0x11374

61. JNIEnv->FindClass(java/lang/ClassFormatError) was called from RWX@0x1201126c[libdexjni.so]0x1126c

62. JNIEnv->NewGlobalRef(class java/lang/ClassFormatError) was called from RWX@0x12011280[libdexjni.so]0x11280

63. JNIEnv->FindClass(java/lang/Error) was called from RWX@0x12015ddc[libdexjni.so]0x15ddc

64. JNIEnv->NewGlobalRef(class java/lang/Error) was called from RWX@0x12015df0[libdexjni.so]0x15df0

65. JNIEnv->FindClass(java/lang/ExceptionInInitializerError) was called from RWX@0x12014d0c[libdexjni.so]0x14d0c

66. JNIEnv->NewGlobalRef(class java/lang/ExceptionInInitializerError) was called from RWX@0x12014d20[libdexjni.so]0x14d20

67. JNIEnv->FindClass(java/io/FileNotFoundException) was called from RWX@0x12017184[libdexjni.so]0x17184

68. JNIEnv->NewGlobalRef(class java/io/FileNotFoundException) was called from RWX@0x12017198[libdexjni.so]0x17198

69. JNIEnv->FindClass(java/io/IOException) was called from RWX@0x120108d8[libdexjni.so]0x108d8

70. JNIEnv->NewGlobalRef(class java/io/IOException) was called from RWX@0x120108ec[libdexjni.so]0x108ec

71. JNIEnv->FindClass(java/lang/IllegalAccessError) was called from RWX@0x12015e78[libdexjni.so]0x15e78

72. JNIEnv->NewGlobalRef(class java/lang/IllegalAccessError) was called from RWX@0x12015e8c[libdexjni.so]0x15e8c

73. JNIEnv->FindClass(java/lang/IllegalAccessException) was called from RWX@0x12013520[libdexjni.so]0x13520

74. JNIEnv->NewGlobalRef(class java/lang/IllegalAccessException) was called from RWX@0x12013534[libdexjni.so]0x13534

75. JNIEnv->FindClass(java/lang/IllegalArgumentException) was called from RWX@0x12013fa4[libdexjni.so]0x13fa4

76. JNIEnv->NewGlobalRef(class java/lang/IllegalArgumentException) was called from RWX@0x12013fb8[libdexjni.so]0x13fb8

77. JNIEnv->FindClass(java/lang/IllegalMonitorStateException) was called from RWX@0x120102bc[libdexjni.so]0x102bc

78. JNIEnv->NewGlobalRef(class java/lang/IllegalMonitorStateException) was called from RWX@0x120102d0[libdexjni.so]0x102d0

79. JNIEnv->FindClass(java/lang/IllegalStateException) was called from RWX@0x1201414c[libdexjni.so]0x1414c

80. JNIEnv->NewGlobalRef(class java/lang/IllegalStateException) was called from RWX@0x12014160[libdexjni.so]0x14160

81. JNIEnv->FindClass(java/lang/IllegalThreadStateException) was called from RWX@0x12014f68[libdexjni.so]0x14f68

82. JNIEnv->NewGlobalRef(class java/lang/IllegalThreadStateException) was called from RWX@0x12014f7c[libdexjni.so]0x14f7c

83. JNIEnv->FindClass(java/lang/IncompatibleClassChangeError) was called from RWX@0x120140c4[libdexjni.so]0x140c4

84. JNIEnv->NewGlobalRef(class java/lang/IncompatibleClassChangeError) was called from RWX@0x120140d8[libdexjni.so]0x140d8

85. JNIEnv->FindClass(java/lang/InstantiationError) was called from RWX@0x12010230[libdexjni.so]0x10230

86. JNIEnv->NewGlobalRef(class java/lang/InstantiationError) was called from RWX@0x12010244[libdexjni.so]0x10244

87. JNIEnv->FindClass(java/lang/InstantiationException) was called from RWX@0x12014044[libdexjni.so]0x14044

88. JNIEnv->NewGlobalRef(class java/lang/InstantiationException) was called from RWX@0x12014058[libdexjni.so]0x14058

89. JNIEnv->FindClass(java/lang/InternalError) was called from RWX@0x1201433c[libdexjni.so]0x1433c

90. JNIEnv->NewGlobalRef(class java/lang/InternalError) was called from RWX@0x12014350[libdexjni.so]0x14350

91. JNIEnv->FindClass(java/lang/InterruptedException) was called from RWX@0x120104e8[libdexjni.so]0x104e8

92. JNIEnv->NewGlobalRef(class java/lang/InterruptedException) was called from RWX@0x120104fc[libdexjni.so]0x104fc

93. JNIEnv->FindClass(java/lang/LinkageError) was called from RWX@0x12010868[libdexjni.so]0x10868

94. JNIEnv->NewGlobalRef(class java/lang/LinkageError) was called from RWX@0x1201087c[libdexjni.so]0x1087c

95. JNIEnv->FindClass(java/lang/NegativeArraySizeException) was called from RWX@0x12010920[libdexjni.so]0x10920

96. JNIEnv->NewGlobalRef(class java/lang/NegativeArraySizeException) was called from RWX@0x12010934[libdexjni.so]0x10934

97. JNIEnv->FindClass(java/lang/NoClassDefFoundError) was called from RWX@0x12010530[libdexjni.so]0x10530

98. JNIEnv->NewGlobalRef(class java/lang/NoClassDefFoundError) was called from RWX@0x12010544[libdexjni.so]0x10544

99. JNIEnv->FindClass(java/lang/NoSuchFieldError) was called from RWX@0x12014d74[libdexjni.so]0x14d74

100. JNIEnv->NewGlobalRef(class java/lang/NoSuchFieldError) was called from RWX@0x12014d88[libdexjni.so]0x14d88

101. JNIEnv->FindClass(java/lang/NoSuchFieldException) was called from RWX@0x120103e4[libdexjni.so]0x103e4

102. JNIEnv->NewGlobalRef(class java/lang/NoSuchFieldException) was called from RWX@0x120103f8[libdexjni.so]0x103f8

103. JNIEnv->FindClass(java/lang/NoSuchMethodError) was called from RWX@0x12014fac[libdexjni.so]0x14fac

104. JNIEnv->NewGlobalRef(class java/lang/NoSuchMethodError) was called from RWX@0x12014fc0[libdexjni.so]0x14fc0

105. JNIEnv->FindClass(java/lang/NullPointerException) was called from RWX@0x1201080c[libdexjni.so]0x1080c

106. JNIEnv->NewGlobalRef(class java/lang/NullPointerException) was called from RWX@0x12010820[libdexjni.so]0x10820

107. JNIEnv->FindClass(java/lang/OutOfMemoryError) was called from RWX@0x12013604[libdexjni.so]0x13604

108. JNIEnv->NewGlobalRef(class java/lang/OutOfMemoryError) was called from RWX@0x12013618[libdexjni.so]0x13618

109. JNIEnv->FindClass(java/lang/RuntimeException) was called from RWX@0x120142d0[libdexjni.so]0x142d0

110. JNIEnv->NewGlobalRef(class java/lang/RuntimeException) was called from RWX@0x120142e4[libdexjni.so]0x142e4

111. JNIEnv->FindClass(java/lang/StackOverflowError) was called from RWX@0x1201419c[libdexjni.so]0x1419c

112. JNIEnv->NewGlobalRef(class java/lang/StackOverflowError) was called from RWX@0x120141b0[libdexjni.so]0x141b0

113. JNIEnv->GetMethodID(java/lang/Class.getField(Ljava/lang/String;)Ljava/lang/reflect/Field;) => 0xd585d5a3 was called from RWX@0x12015164[libdexjni.so]0x15164

114. JNIEnv->GetMethodID(java/lang/Class.getDeclaredField(Ljava/lang/String;)Ljava/lang/reflect/Field;) => 0x987c467d was called from RWX@0x120152c4[libdexjni.so]0x152c4

115. JNIEnv->GetMethodID(java/lang/reflect/Field.get(Ljava/lang/Object;)Ljava/lang/Object;) => 0x7abc2552 was called from RWX@0x120155ac[libdexjni.so]0x155ac

116. JNIEnv->GetMethodID(java/lang/reflect/Field.getBoolean(Ljava/lang/Object;)Z) => 0xfae67c5e was called from RWX@0x12015828[libdexjni.so]0x15828

117. JNIEnv->GetMethodID(java/lang/reflect/Field.getByte(Ljava/lang/Object;)B) => 0x35776224 was called from RWX@0x12015a80[libdexjni.so]0x15a80

118. JNIEnv->GetMethodID(java/lang/reflect/Field.getShort(Ljava/lang/Object;)S) => 0xaf19c8c3 was called from RWX@0x12015ce0[libdexjni.so]0x15ce0

119. JNIEnv->GetMethodID(java/lang/reflect/Field.getChar(Ljava/lang/Object;)C) => 0x50a94c97 was called from RWX@0x12012668[libdexjni.so]0x12668

120. JNIEnv->GetMethodID(java/lang/reflect/Field.getInt(Ljava/lang/Object;)I) => 0x82f4a366 was called from RWX@0x12012890[libdexjni.so]0x12890

121. JNIEnv->GetMethodID(java/lang/reflect/Field.getLong(Ljava/lang/Object;)J) => 0xd72cad38 was called from RWX@0x12012ae4[libdexjni.so]0x12ae4

122. JNIEnv->GetMethodID(java/lang/reflect/Field.getFloat(Ljava/lang/Object;)F) => 0xba8696d6 was called from RWX@0x12012d44[libdexjni.so]0x12d44

123. JNIEnv->GetMethodID(java/lang/reflect/Field.getDouble(Ljava/lang/Object;)D) => 0xfe53f3d was called from RWX@0x12012fb0[libdexjni.so]0x12fb0

124. JNIEnv->GetMethodID(java/lang/reflect/Field.set(Ljava/lang/Object;Ljava/lang/Object;)V) => 0xf25f2330 was called from RWX@0x12013270[libdexjni.so]0x13270

125. JNIEnv->GetMethodID(java/lang/reflect/Field.setBoolean(Ljava/lang/Object;Z)V) => 0xc42cc02e was called from RWX@0x120134f8[libdexjni.so]0x134f8

126. JNIEnv->GetMethodID(java/lang/reflect/Field.setChar(Ljava/lang/Object;C)V) => 0xb43f5b1f was called from RWX@0x12016270[libdexjni.so]0x16270

127. JNIEnv->GetMethodID(java/lang/reflect/Field.setByte(Ljava/lang/Object;B)V) => 0x6933f390 was called from RWX@0x120164b8[libdexjni.so]0x164b8

128. JNIEnv->GetMethodID(java/lang/reflect/Field.setShort(Ljava/lang/Object;S)V) => 0x3c37f3fb was called from RWX@0x12016710[libdexjni.so]0x16710

129. JNIEnv->GetMethodID(java/lang/reflect/Field.setInt(Ljava/lang/Object;I)V) => 0x256c9664 was called from RWX@0x12016958[libdexjni.so]0x16958

130. JNIEnv->GetMethodID(java/lang/reflect/Field.setFloat(Ljava/lang/Object;F)V) => 0x9e64b90e was called from RWX@0x12016b9c[libdexjni.so]0x16b9c

131. JNIEnv->GetMethodID(java/lang/reflect/Field.setLong(Ljava/lang/Object;J)V) => 0xfe28280c was called from RWX@0x12016e10[libdexjni.so]0x16e10

132. JNIEnv->GetMethodID(java/lang/reflect/Field.setDouble(Ljava/lang/Object;D)V) => 0xe7ac6ddb was called from RWX@0x12017064[libdexjni.so]0x17064

133. JNIEnv->GetMethodID(java/lang/reflect/Field.setAccessible(Z)V) => 0xcb19eff2 was called from RWX@0x12014440[libdexjni.so]0x14440

134. JNIEnv->GetMethodID(java/lang/reflect/AccessibleObject.setAccessible(Z)V) => 0xc15280ab was called from RWX@0x120144f0[libdexjni.so]0x144f0

135. JNIEnv->GetMethodID(java/lang/String.<init>([B)V) => 0xd5642694 was called from RWX@0x1201464c[libdexjni.so]0x1464c

136. JNIEnv->GetMethodID(java/lang/String.intern()Ljava/lang/String;) => 0x38d73d3 was called from RWX@0x12014714[libdexjni.so]0x14714

137. JNIEnv->GetMethodID(java/lang/Object.getClass()Ljava/lang/Class;) => 0xb529717c was called from RWX@0x1201495c[libdexjni.so]0x1495c

138. JNIEnv->GetMethodID(java/lang/Class.getName()Ljava/lang/String;) => 0x4a974877 was called from RWX@0x12014a40[libdexjni.so]0x14a40

139. JNIEnv->GetStaticMethodID(java/lang/reflect/Proxy.isProxyClass(Ljava/lang/Class;)Z) => 0x7698fdb9 was called from RWX@0x12014cc0[libdexjni.so]0x14cc0

140. JNIEnv->GetStaticMethodID(com/fort/andjni/JniLib.InvokeObject([Ljava/lang/Object;)Ljava/lang/Object;) => 0xac6fba43 was called from RWX@0x12011700[libdexjni.so]0x11700

141. JNIEnv->GetStaticMethodID(com/fort/andjni/JniLib.getAllSuperClassesAndInterfaces(Ljava/lang/Class;)[Ljava/lang/Class;) => 0x2c346997 was called from RWX@0x12011b04[libdexjni.so]0x11b04

142. JNIEnv->GetStaticMethodID(java/lang/Boolean.valueOf(Z)Ljava/lang/Boolean;) => 0x1d8c249f was called from RWX@0x12011cc0[libdexjni.so]0x11cc0

143. JNIEnv->GetStaticMethodID(java/lang/Byte.valueOf(B)Ljava/lang/Byte;) => 0x25bc8287 was called from RWX@0x12011e40[libdexjni.so]0x11e40

144. JNIEnv->GetStaticMethodID(java/lang/Character.valueOf(C)Ljava/lang/Character;) => 0xba1ae606 was called from RWX@0x12011fec[libdexjni.so]0x11fec

145. JNIEnv->GetStaticMethodID(java/lang/Short.valueOf(S)Ljava/lang/Short;) => 0xe91382b0 was called from RWX@0x12012184[libdexjni.so]0x12184

146. JNIEnv->GetStaticMethodID(java/lang/Integer.valueOf(I)Ljava/lang/Integer;) => 0x8f152ce2 was called from RWX@0x12012338[libdexjni.so]0x12338

147. JNIEnv->GetStaticMethodID(java/lang/Float.valueOf(F)Ljava/lang/Float;) => 0xdac25823 was called from RWX@0x120137fc[libdexjni.so]0x137fc

148. JNIEnv->GetStaticMethodID(java/lang/Double.valueOf(D)Ljava/lang/Double;) => 0xca7b90a5 was called from RWX@0x12013984[libdexjni.so]0x13984

149. JNIEnv->GetStaticMethodID(java/lang/Long.valueOf(J)Ljava/lang/Long;) => 0x1a324bff was called from RWX@0x12013b0c[libdexjni.so]0x13b0c

150. INFO [com.github.unidbg.spi.Dlfcn] (Dlfcn:31) - Find symbol "dvmDecodeIndirectRef" failed: handle=0x0, LR=RWX@0x12013c8c[libdexjni.so]0x13c8c

151. INFO [com.github.unidbg.spi.Dlfcn] (Dlfcn:31) - Find symbol "dvmFindStaticFieldHier" failed: handle=0x0, LR=RWX@0x12013e34[libdexjni.so]0x13e34

152. JNIEnv->GetMethodID(java/lang/Integer.intValue()I) => 0x5d9f068b was called from RWX@0x12013ed8[libdexjni.so]0x13ed8

153. JNIEnv->GetMethodID(java/lang/Short.intValue()I) => 0xa3b9250d was called from RWX@0x12013f70[libdexjni.so]0x13f70

154. JNIEnv->GetMethodID(java/lang/Character.charValue()C) => 0x71f71ced was called from RWX@0x12010ae4[libdexjni.so]0x10ae4

155. JNIEnv->GetMethodID(java/lang/Byte.intValue()I) => 0x4d014b99 was called from RWX@0x12010b80[libdexjni.so]0x10b80

156. JNIEnv->GetMethodID(java/lang/Boolean.booleanValue()Z) => 0x31f67dab was called from RWX@0x12010d20[libdexjni.so]0x10d20

157. JNIEnv->GetMethodID(java/lang/Long.longValue()J) => 0x44606195 was called from RWX@0x12010e84[libdexjni.so]0x10e84

158. JNIEnv->GetMethodID(java/lang/Float.floatValue()F) => 0x6ff98ad7 was called from RWX@0x12010ff8[libdexjni.so]0x10ff8

159. JNIEnv->GetMethodID(java/lang/Double.doubleValue()D) => 0x8acb0bf9 was called from RWX@0x12011178[libdexjni.so]0x11178

160. JNIEnv->FindClass(android/os/Build$VERSION) was called from RWX@0x1201732c[libdexjni.so]0x1732c

161. JNIEnv->GetStaticFieldID(android/os/Build$VERSION.SDK_INTI) => 0x1e4ff4f1 was called from RWX@0x12017354[libdexjni.so]0x17354

162. JNIEnv->GetStaticIntField(class android/os/Build$VERSION, SDK_INT => 0x17) was called from RWX@0x1201736c[libdexjni.so]0x1736c

163. JNIEnv->FindClass(com/fort/andjni/JniLib) was called from RWX@0x1200fea4[libdexjni.so]0xfea4

164. JNIEnv->RegisterNatives(com/fort/andjni/JniLib, RW@0x1255fe50[libdexjni.so]0x55fe50, 10) was called from RWX@0x1200ff58[libdexjni.so]0xff58

165. RegisterNative(com/fort/andjni/JniLib, cV([Ljava/lang/Object;)V, RWX@0x12017770[libdexjni.so]0x17770)

166. RegisterNative(com/fort/andjni/JniLib, cI([Ljava/lang/Object;)I, RWX@0x120177c4[libdexjni.so]0x177c4)

167. RegisterNative(com/fort/andjni/JniLib, cL([Ljava/lang/Object;)Ljava/lang/Object;, RWX@0x1201781c[libdexjni.so]0x1781c)

168. RegisterNative(com/fort/andjni/JniLib, cS([Ljava/lang/Object;)S, RWX@0x12017874[libdexjni.so]0x17874)

169. RegisterNative(com/fort/andjni/JniLib, cC([Ljava/lang/Object;)C, RWX@0x120178cc[libdexjni.so]0x178cc)

170. RegisterNative(com/fort/andjni/JniLib, cB([Ljava/lang/Object;)B, RWX@0x12017924[libdexjni.so]0x17924)

171. RegisterNative(com/fort/andjni/JniLib, cJ([Ljava/lang/Object;)J, RWX@0x1201797c[libdexjni.so]0x1797c)

172. RegisterNative(com/fort/andjni/JniLib, cZ([Ljava/lang/Object;)Z, RWX@0x120179d4[libdexjni.so]0x179d4)

173. RegisterNative(com/fort/andjni/JniLib, cF([Ljava/lang/Object;)F, RWX@0x12017a2c[libdexjni.so]0x17a2c)

174. RegisterNative(com/fort/andjni/JniLib, cD([Ljava/lang/Object;)D, RWX@0x12017a84[libdexjni.so]0x17a84)

复制代码

整个运行流程非常清晰，可以依据这个来补sub_12010028中的结构体.

这里我为了方便选择调用0号函数（这张图好像是第三次出现了233）

1. vm.resolveClass("com/fort/andjni/JniLib").callStaticJniMethod(emulator, "cV([Ljava/lang/Object;)V", new ArrayObject(vm.resolveClass("android/app/Activity"), vm.resolveClass("android/app/Activity").newObject(null), vm.resolveClass("android/os/Bundle").newObject(null), DvmInteger.valueOf(vm, 0)));

复制代码

因为函数简单（毕竟类都叫BlankActivity了），没有复杂逻辑，只补了几个简单函数就跑完了，整个流程被顺利trace下来.

毕竟是vmp，接下来的首要任务是先找到insns.
这里通过定位我命名的那个code_item结构然后偏移0x10即为insns，而code_item又在j__lSSO05lI$I5IllOl_0lS$_lllIII__l$IOlI55$O550IS__lS5$函数返回的结构体中：


在trace中搜索0x12018194：

1. [libdexjni.so 0x018194] [f80300aa] 0x12018194: "mov x24, x0" x0=0x12893030 => x24=0x12893030

复制代码

得到结构体内存地址0x12893030，再查找其偏移0x8处的code_item读取：

1. [libdexjni.so 0x018228] [080740f9] 0x12018228: "ldr x8, [x24, #8]" ; mem[READ] abs=0x12893038 x24=0x12893030 => x8=0x128ac000

复制代码

对比一下code_item的标准结构（这里不去关注后面的try_item）

1. struct code_item {

2.     uint16_t registers_size;

3.     uint16_t ins_size;

4.     uint16_t outs_size;

5.     uint16_t tries_size;

6.     uint32_t debug_info_off;

7.     uint32_t insns_size;

8.     uint16_t insns[insns_size];

9. }

复制代码

前0x10字节的确非常符合code_item的结构，并且可以验证偏移0xc处的0x30正是insns_size（这段数据没有try_item，长度共0x70，符合0x10+0x30*2），因此后面0x60字节即为insns.
查找对0x128ac010处的读取：

1. [libdexjni.so 0x04e5cc] [090140b9] 0x1204e5cc: "ldr w9, [x8]" ; mem[READ] abs=0x128ac010 x8=0x128ac010 => w9=0x9c2e

复制代码

读出了0x00009c2e四个字节，低16位被拿去查表0x12098a30，结果是0x12098a30 + (0x8d6c << 3)) = 0x120e6ba0
然后从这个位置读出了一个地址，最后br跳过去了

至于这个目标地址...依然在解释器函数之内：

（0x12029578-0x1206e068，这函数实在太大了）
而高16位则是

1. [libdexjni.so 0x04e5d0] [e9ab0af9] 0x1204e5d0: "str x9, [sp, #0x1550]" ; mem[WRITE] abs=0xe4ffe500 x9=0x9c2e sp=0xe4ffcfb0 => x9=0x9c2e

2.

3. ->

4.

5. [libdexjni.so 0x038d24] [e8ab4af9] 0x12038d24: "ldr x8, [sp, #0x1550]" ; mem[READ] abs=0xe4ffe500 sp=0xe4ffcfb0 => x8=0x9c2e

6. [libdexjni.so 0x038d28] [085d1053] 0x12038d28: "ubfx w8, w8, #0x10, #8" w8=0x9c2e => w8=0x0

7. [libdexjni.so 0x038d2c] [e8a70af9] 0x12038d2c: "str x8, [sp, #0x1548]" ; mem[WRITE] abs=0xe4ffe4f8 x8=0x0 sp=0xe4ffcfb0 => x8=0x0

8.

9. ->

10.

11. [libdexjni.so 0x056770] [e8a74af9] 0x12056770: "ldr x8, [sp, #0x1548]" ; mem[READ] abs=0xe4ffe4f8 sp=0xe4ffcfb0 => x8=0x0

12. [libdexjni.so 0x056774] [083d4092] 0x12056774: "and x8, x8, #0xffff" x8=0x0 => x8=0x0

13. [libdexjni.so 0x056778] [e11742f9] 0x12056778: "ldr x1, [sp, #0x428]" ; mem[READ] abs=0xe4ffd3d8 sp=0xe4ffcfb0 => x1=0x35ef1869

14. [libdexjni.so 0x05677c] [e9b34af9] 0x1205677c: "ldr x9, [sp, #0x1560]" ; mem[READ] abs=0xe4ffe510 sp=0xe4ffcfb0 => x9=0x134d1080

15. [libdexjni.so 0x056780] [217928f8] 0x12056780: "str x1, [x9, x8, lsl #3]" ; mem[WRITE] abs=0x134d1080 x1=0x35ef1869 x9=0x134d1080 x8=0x0 => x1=0x35ef1869

复制代码

通过高16位查询了一个表并写入了一个值.

低16位的查表跳转，很像是在解释指令；而高16位的查表写入，则像是对寄存器的操作.
但是标准的opcode明明是uint8_t，这里却是uint16_t，难不成魔改了？
简单翻了一下表0x12098a30，发现其中元素大多为0，但非0元素全部指向解释器函数内部，加大了uint16_t的vmcode的可能性.
为了验证，直接查一下第0xffff位的元素地址，看看这个表是否真的有这么大：
0x12098a30 + (0xffff << 3) = 0x12118a28

结果非常神奇，恰好达到了一个数据分界处，0x12118a28之上的部分即为跳转表，之下的部分则是其他数据，所以这个表的确有0xffff个元素，涵盖了整个uint16_t范围.
种种迹象表明，vmcode就是uint16_t类型的，因此这个vmp必然存在魔改.
跳转表得到后，使用unidbg对整个表范围的读取进行监听：

1. emulator.traceRead(0x12098a30, 0x12118a28);

复制代码

得到结果：

1. Memory READ at 0x120e6ba0, data size = 8, data value = 0x000000001206588c, PC=RWX@0x1204e5e0[libdexjni.so]0x4e5e0, LR=RWX@0x12050708[libdexjni.so]0x50708

2. Memory READ at 0x120df590, data size = 8, data value = 0x00000000120449fc, PC=RWX@0x1204b05c[libdexjni.so]0x4b05c, LR=RWX@0x1205081c[libdexjni.so]0x5081c

3. Memory READ at 0x120bdb80, data size = 8, data value = 0x0000000012065158, PC=RWX@0x120553a4[libdexjni.so]0x553a4, LR=RWX@0x12031234[libdexjni.so]0x31234

4. Memory READ at 0x120f24d0, data size = 8, data value = 0x0000000012044d90, PC=RWX@0x1202e93c[libdexjni.so]0x2e93c, LR=RWX@0x12051cfc[libdexjni.so]0x51cfc

5. Memory READ at 0x120c6498, data size = 8, data value = 0x00000000120651c0, PC=RWX@0x120570c8[libdexjni.so]0x570c8, LR=RWX@0x12056044[libdexjni.so]0x56044

6. Memory READ at 0x12116fa8, data size = 8, data value = 0x000000001205cba4, PC=RWX@0x12052584[libdexjni.so]0x52584, LR=RWX@0x1205f1cc[libdexjni.so]0x5f1cc

7. Memory READ at 0x120aba20, data size = 8, data value = 0x0000000012064fd8, PC=RWX@0x12064ae8[libdexjni.so]0x64ae8, LR=RWX@0x12049f78[libdexjni.so]0x49f78

8. Memory READ at 0x120c6498, data size = 8, data value = 0x00000000120651c0, PC=RWX@0x12053570[libdexjni.so]0x53570, LR=RWX@0x12049f78[libdexjni.so]0x49f78

9. Memory READ at 0x120c6498, data size = 8, data value = 0x00000000120651c0, PC=RWX@0x12052584[libdexjni.so]0x52584, LR=RWX@0x1205f1cc[libdexjni.so]0x5f1cc

10. Memory READ at 0x120bc770, data size = 8, data value = 0x0000000012065708, PC=RWX@0x12052584[libdexjni.so]0x52584, LR=RWX@0x1205f1cc[libdexjni.so]0x5f1cc

复制代码

对读取的地址进行逆向操作，还原出vmcode：
vmcode = (address - 0x12098a30) >>> 3
逐个翻译得：0x9c2e、0x8d6c、0x4a2a、0xb354、0x5b4d、0xfcaf、0x25fe、0x5b4d、0x5b4d、0x47a8.
并以此为特征将指令分割：

现在vmcode已知了，接下来想要分析指令操作，还有必不可少的一步：寄存器监听.
在上文有一个地方我们看到了对寄存器内存的分配：

unidbg断点可得分配的内存地址为0x134d1080，而这个方法的registers_size为4，因此监听：

1. emulator.traceRead(0x134d1080, 0x134d10a0);

2. emulator.traceWrite(0x134d1080, 0x134d10a0);

复制代码

其中0x134d1080为v0寄存器、0x134d1088 v1、0x134d1090 p0、0x134d1098 p1

可以清楚看到先对寄存器进行了一些初始化，写入了p0(this)和p1(android/os/Bundle)的值.
Memory READ at 0x120e6ba0后开始运行第一条指令，在v0寄存器上写入了值0x000000004bb4de6a；第二条指令在v1寄存器写入值0x000000002f8f5f62，并且两条指令执行的作用看上去出奇一致，都是在初始化一个jstring，不过vmcode不同.
从log中可以猜到，这两个值正是来自Memory WRITE上方的JNIEnv->NewGlobalRef.

这里凭空出现了一个字符串，自然要搞清来由.
直接跳转到上方jni调用的地址处，发现是从j__l$I0lOll00SOlSI_ISl50IO0lOI_Ol$_IIIlIIlIl5IIll5IS5$读取的

跟过去发现又是在查表：

先不急着去追数据，先打印一下用于查表的idx：

1. emulator.getBackend().hook_add_new(new CodeHook() {

2.     @Override

3.     public void hook(Backend backend, long address, int size, Object user) {

4.         System.out.printf("idx：%#x\n", backend.reg_read(Unicorn.UC_ARM64_REG_X0).intValue());

5.     }

6.

7.     @Override

8.     public void onAttach(UnHook unHook) {

9.     }

10.

11.     @Override

12.     public void detach() {

13.     }

14. }, 0x1200cea0, 0x1200cea0, null);

复制代码

再回头看一眼insns，这不就在这嘛：

所以这两字节就是用于查字符串表的索引喽.
交叉引用一下字符串表，依旧是熟悉的感觉：

看到这里，你可能已经猜到了，没错，这就是JNI_OnLoad调用的第二个函数.（之前跳过的函数最后都没逃过qwq）

依然是通过MessagePack解析二进制数据，并且这个函数初始化的数据不只有这一个表，函数中一共对五个表进行了初始化：

依旧是等这个函数运行完后，使用unidbg直接打印出表，然后猜测含义，这里直接给出分析结果：











结构体：

1. struct dvm_string __packed

2. {

3. char* string;

4. uint64_t len;

5. };

6.

7. struct dvm_method __packed

8. {

9. char* class_name;

10. char* method_args;

11. char* method_name;

12. };

13.

14. struct dvm_method2 __packed

15. {

16. char* class_name;

17. char* method_sig;

18. char* method_name;

19. char* method_shorty;

20. uint64_t zero;

21. };

复制代码

看了这么多，至于被解析的数据在哪，在函数开头有这么一个调用：

这个函数就是对so中一段数据进行lz4解压，所以来源就很明显了.


现在数据来源都清楚了，那么写入v0还是v1是怎么决定的呢，其实就是vmcode后面的两字节，也就是之前追踪的“0x00009c2e的高16位”：

第一条指令是0x00，所以写入v0寄存器；第二条指令是0x01，写入v1寄存器.
至于最后0x8a08和0x6e4d那两字节数据，在trace中也没有读取的记录，只读了个半字

1. [libdexjni.so 0x038d1c] [01094079] 0x12038d1c: "ldrh w1, [x8, #4]" ; mem[READ] abs=0x128ac014 x8=0x128ac010 => w1=0x4f9

复制代码

应该是用于对齐的无用数据了（后面同样有大量这种数据）.
因此这两条指令翻译过来就是

1. const-string v0, "BlankActivity"

2. const-string v1, "onCreate"

复制代码

然后再来看下一条，这条指令显然是在调用com/albert/xchatkit/d.b(Ljava/lang/String;Ljava/lang/String;)V方法

不出意外要用到刚才解析出来的method表.
为了省事，直接把四个表（有一个表不存在这样的查表函数，因此是四个）的读取全部hook一下：

1. emulator.getBackend().hook_add_new(new CodeHook() {

2.     @Override

3.     public void hook(Backend backend, long address, int size, Object user) {

4.         System.out.printf("g_string_list2：%#x\n", backend.reg_read(Unicorn.UC_ARM64_REG_X0).intValue());

5.     }

6.

7.     @Override

8.     public void onAttach(UnHook unHook) {

9.     }

10.

11.     @Override

12.     public void detach() {

13.     }

14. }, 0x1200cea0, 0x1200cea0, null);

15.

16. emulator.getBackend().hook_add_new(new CodeHook() {

17.     @Override

18.     public void hook(Backend backend, long address, int size, Object user) {

19.         System.out.printf("g_int_list：%#x\n", backend.reg_read(Unicorn.UC_ARM64_REG_X0).intValue());

20.     }

21.

22.     @Override

23.     public void onAttach(UnHook unHook) {

24.     }

25.

26.     @Override

27.     public void detach() {

28.     }

29. }, 0x1200ceec, 0x1200ceec, null);

30.

31. emulator.getBackend().hook_add_new(new CodeHook() {

32.     @Override

33.     public void hook(Backend backend, long address, int size, Object user) {

34.         System.out.printf("g_method_list：%#x\n", backend.reg_read(Unicorn.UC_ARM64_REG_X0).intValue());

35.     }

36.

37.     @Override

38.     public void onAttach(UnHook unHook) {

39.     }

40.

41.     @Override

42.     public void detach() {

43.     }

44. }, 0x1200cf38, 0x1200cf38, null);

45.

46. emulator.getBackend().hook_add_new(new CodeHook() {

47.     @Override

48.     public void hook(Backend backend, long address, int size, Object user) {

49.         System.out.printf("g_method_list2：%#x\n", backend.reg_read(Unicorn.UC_ARM64_REG_X0).intValue());

50.     }

51.

52.     @Override

53.     public void onAttach(UnHook unHook) {

54.     }

55.

56.     @Override

57.     public void detach() {

58.     }

59. }, 0x1200cf84, 0x1200cf84, null);

复制代码

重新运行一下得到method idx是0x6c3



由于调用的jni函数是CallStaticVoidMethodA，因此这条指令应该是invoke-static，并且从寄存器读取或者结合前两条指令可以得出两个入参jstring是v0和v1.
现在这条指令被魔改成了这样，尝试找一下其中是否存在规律.
invoke-static原是35c格式的，如果要写出原指令的字节码，应是（我的图做得好烂啊hhhhh）：


有没有发现有点眼熟？忽视掉用于对齐的垃圾数据：

除了opcode变成了二字节的vmcode，其他数据简直一模一样！
所以这条invoke指令也就被还原了：

1. invoke-static {v0, v1}, Lcom/albert/xchatkit/d;->b(Ljava/lang/String;Ljava/lang/String;)V

复制代码

后面的指令根据trace大概看了下，和上述逻辑均相同，都是由标准结构塞入一些对齐数据来魔改的，本质和标准结构类似.
这里给出trace、vm字节码以及还原对照：

第四条指令：
trace：

1. Memory READ at 0x120f24d0, data size = 8, data value = 0x0000000012044d90, PC=RWX@0x1202e93c[libdexjni.so]0x2e93c, LR=RWX@0x12051cfc[libdexjni.so]0x51cfc

2. Memory READ at 0x134d1090, data size = 8, data value = 0x0000000043d7741f, PC=RWX@0x1204f910[libdexjni.so]0x4f910, LR=RWX@0x12051cfc[libdexjni.so]0x51cfc

3. Memory READ at 0x134d1080, data size = 8, data value = 0x000000003bd94634, PC=RWX@0x1206e2fc[libdexjni.so]0x6e2fc, LR=RWX@0x1205f96c[libdexjni.so]0x5f96c

4. Memory READ at 0x134d1088, data size = 8, data value = 0x0000000074294adb, PC=RWX@0x1206e2fc[libdexjni.so]0x6e2fc, LR=RWX@0x1206e308[libdexjni.so]0x6e308

5. Memory READ at 0x134d1090, data size = 8, data value = 0x0000000043d7741f, PC=RWX@0x1206e2fc[libdexjni.so]0x6e2fc, LR=RWX@0x1206e308[libdexjni.so]0x6e308

6. Memory READ at 0x134d1098, data size = 8, data value = 0x0000000017baae6e, PC=RWX@0x1206e2fc[libdexjni.so]0x6e2fc, LR=RWX@0x1206e308[libdexjni.so]0x6e308

7. g_method_list2：0x40

8. JNIEnv->FindClass(android/app/Activity) was called from RWX@0x1205f990[libdexjni.so]0x5f990

9. JNIEnv->FindClass(java/lang/Class) was called from RWX@0x1205f9ac[libdexjni.so]0x5f9ac

10. JNIEnv->GetMethodID(java/lang/Class.isInterface()Z) => 0x789061df was called from RWX@0x1205f9d0[libdexjni.so]0x5f9d0

11. JNIEnv->CallBooleanMethodV(class android/app/Activity, isInterface() => true) was called from RWX@0x12018df0[libdexjni.so]0x18df0

12. JNIEnv->GetMethodID(android/app/Activity.onCreate(Landroid/os/Bundle;)V) => 0x2f2ecda8 was called from RWX@0x1204adc4[libdexjni.so]0x4adc4

13. Memory READ at 0x134d1098, data size = 8, data value = 0x0000000017baae6e, PC=RWX@0x1202b0b8[libdexjni.so]0x2b0b8, LR=RWX@0x1204adc4[libdexjni.so]0x4adc4

14. Memory READ at 0x134d1090, data size = 8, data value = 0x0000000043d7741f, PC=RWX@0x1204e57c[libdexjni.so]0x4e57c, LR=RWX@0x1204adc4[libdexjni.so]0x4adc4

15. JNIEnv->CallNonVirtualVoidMethodA(android.app.Activity@43d7741f, android/app/Activity, onCreate(android.os.Bundle@17baae6e)) was called from RWX@0x12055d44[libdexjni.so]0x55d44

复制代码

1. 字节码：54 B3 20 00 40 00 82 5E 32 00 D7 FA

2. 0xb354 -> opcode：invoke-super

3. 0x(00)20 -> registerCount=2, regG=0

4. 0x0040 -> g_method_list2 idx[android/app/Activity.onCreate(Landroid/os/Bundle;)V]

5. 0x5e82 -> padding

6. 0x0032 -> regC=2(p0), regD=3(p1), regE=0, regF=0

7. 0xfad7 -> padding

8. Smali：invoke-super {p0, p1}, Landroid/app/Activity;->onCreate(Landroid/os/Bundle;)V;

复制代码

第五条指令：
trace：

1. Memory READ at 0x120c6498, data size = 8, data value = 0x00000000120651c0, PC=RWX@0x120570c8[libdexjni.so]0x570c8, LR=RWX@0x12056044[libdexjni.so]0x56044

2. Memory READ at 0x134d1090, data size = 8, data value = 0x0000000043d7741f, PC=RWX@0x1205da04[libdexjni.so]0x5da04, LR=RWX@0x12056044[libdexjni.so]0x56044

3. Memory READ at 0x134d1080, data size = 8, data value = 0x000000003bd94634, PC=RWX@0x1206e2fc[libdexjni.so]0x6e2fc, LR=RWX@0x12062f18[libdexjni.so]0x62f18

4. Memory READ at 0x134d1088, data size = 8, data value = 0x0000000074294adb, PC=RWX@0x1206e2fc[libdexjni.so]0x6e2fc, LR=RWX@0x1206e308[libdexjni.so]0x6e308

5. Memory READ at 0x134d1090, data size = 8, data value = 0x0000000043d7741f, PC=RWX@0x1206e2fc[libdexjni.so]0x6e2fc, LR=RWX@0x1206e308[libdexjni.so]0x6e308

6. Memory READ at 0x134d1098, data size = 8, data value = 0x0000000017baae6e, PC=RWX@0x1206e2fc[libdexjni.so]0x6e2fc, LR=RWX@0x1206e308[libdexjni.so]0x6e308

7. g_method_list2：0x3a

8. JNIEnv->FindClass(android/app/Activity) was called from RWX@0x12062f3c[libdexjni.so]0x62f3c

9. JNIEnv->GetMethodID(android/app/Activity.getWindow()Landroid/view/Window;) => 0x4333f814 was called from RWX@0x120327b4[libdexjni.so]0x327b4

10. Memory READ at 0x134d1090, data size = 8, data value = 0x0000000043d7741f, PC=RWX@0x12055a5c[libdexjni.so]0x55a5c, LR=RWX@0x1204bc14[libdexjni.so]0x4bc14

11. JNIEnv->CallObjectMethodA(android.app.Activity@43d7741f, getWindow() => android.view.Window@130f889) was called from RWX@0x1205ee14[libdexjni.so]0x5ee14

复制代码

1. 字节码：4D 5B 10 00 3A 00 55 9B 02 00 73 66

2. 0x5b4d -> opcode：invoke-virtual

3. 0x(00)10 -> registerCount=1, regG=0

4. 0x003a -> g_method_list2 idx[android/app/Activity.getWindow()Landroid/view/Window;]

5. 0x9b55 -> padding

6. 0x0002 -> regC=2(p0), regD=0, regE=0, regF=0

7. 0x6673 -> padding

8. Smali：invoke-virtual {p0}, Landroid/app/Activity;->getWindow()Landroid/view/Window;

复制代码

第六条指令：
trace：

1. Memory READ at 0x12116fa8, data size = 8, data value = 0x000000001205cba4, PC=RWX@0x12052584[libdexjni.so]0x52584, LR=RWX@0x1205f1cc[libdexjni.so]0x5f1cc

2. Memory WRITE at 0x134d1098, data size = 8, data value = 0x000000000130f889, PC=RWX@0x12049f68[libdexjni.so]0x49f68, LR=RWX@0x1205f1cc[libdexjni.so]0x5f1cc

复制代码

1. 字节码：AF FC 03 00

2. 0xfcaf -> opcode：move-result-object

3. 0x0003 -> reg=3(p1)

4. Smali：move-result-object p1

复制代码

第七条指令：
trace：

1. Memory READ at 0x120aba20, data size = 8, data value = 0x0000000012064fd8, PC=RWX@0x12064ae8[libdexjni.so]0x64ae8, LR=RWX@0x12049f78[libdexjni.so]0x49f78

2. Memory WRITE at 0x134d1080, data size = 8, data value = 0x0000000000280400, PC=RWX@0x12035028[libdexjni.so]0x35028, LR=RWX@0x12049f78[libdexjni.so]0x49f78

复制代码

1. 字节码：FE 25 00 00 00 04 5B CE 28 00 FD 58

2. 0x25fe -> opcode：const

3. 0x(00)00 -> reg=0(v0)

4. 0x0400 -> low 16 bits

5. 0xce5b -> padding

6. 0x0028 -> high 16 bits

7. 0x58fd -> padding

8. Smali：const v0, 0x00280400

复制代码

第八条指令：
trace：

1. Memory READ at 0x120c6498, data size = 8, data value = 0x00000000120651c0, PC=RWX@0x12053570[libdexjni.so]0x53570, LR=RWX@0x12049f78[libdexjni.so]0x49f78

2. Memory READ at 0x134d1098, data size = 8, data value = 0x000000000130f889, PC=RWX@0x1205da04[libdexjni.so]0x5da04, LR=RWX@0x12049f78[libdexjni.so]0x49f78

3. Memory READ at 0x134d1080, data size = 8, data value = 0x0000000000280400, PC=RWX@0x1206e2fc[libdexjni.so]0x6e2fc, LR=RWX@0x12062f18[libdexjni.so]0x62f18

4. Memory READ at 0x134d1088, data size = 8, data value = 0x0000000074294adb, PC=RWX@0x1206e2fc[libdexjni.so]0x6e2fc, LR=RWX@0x1206e308[libdexjni.so]0x6e308

5. Memory READ at 0x134d1090, data size = 8, data value = 0x0000000043d7741f, PC=RWX@0x1206e2fc[libdexjni.so]0x6e2fc, LR=RWX@0x1206e308[libdexjni.so]0x6e308

6. Memory READ at 0x134d1098, data size = 8, data value = 0x000000000130f889, PC=RWX@0x1206e2fc[libdexjni.so]0x6e2fc, LR=RWX@0x1206e308[libdexjni.so]0x6e308

7. g_method_list2：0x301

8. JNIEnv->FindClass(android/view/Window) was called from RWX@0x12062f3c[libdexjni.so]0x62f3c

9. JNIEnv->GetMethodID(android/view/Window.addFlags(I)V) => 0x3448735f was called from RWX@0x120327b4[libdexjni.so]0x327b4

10. Memory READ at 0x134d1080, data size = 8, data value = 0x0000000000280400, PC=RWX@0x1202ed4c[libdexjni.so]0x2ed4c, LR=RWX@0x1204bc14[libdexjni.so]0x4bc14

11. Memory READ at 0x134d1098, data size = 8, data value = 0x000000000130f889, PC=RWX@0x12055a5c[libdexjni.so]0x55a5c, LR=RWX@0x1204bc14[libdexjni.so]0x4bc14

12. JNIEnv->CallVoidMethodA(android.view.Window@130f889, addFlags(0x280400)) was called from RWX@0x1205eec8[libdexjni.so]0x5eec8

复制代码

1. 字节码：4D 5B 20 00 01 03 F5 4D 03 00 E5 23

2. 0x5b4d分析前面已经给出

3. Smali：invoke-virtual {p1, v0}, Landroid/view/Window;->addFlags(I)V

复制代码

第九条指令：
trace：

1. Memory READ at 0x120c6498, data size = 8, data value = 0x00000000120651c0, PC=RWX@0x12052584[libdexjni.so]0x52584, LR=RWX@0x1205f1cc[libdexjni.so]0x5f1cc

2. Memory READ at 0x134d1090, data size = 8, data value = 0x0000000043d7741f, PC=RWX@0x1205da04[libdexjni.so]0x5da04, LR=RWX@0x1205f1cc[libdexjni.so]0x5f1cc

3. Memory READ at 0x134d1080, data size = 8, data value = 0x0000000000280400, PC=RWX@0x1206e2fc[libdexjni.so]0x6e2fc, LR=RWX@0x12062f18[libdexjni.so]0x62f18

4. Memory READ at 0x134d1088, data size = 8, data value = 0x0000000074294adb, PC=RWX@0x1206e2fc[libdexjni.so]0x6e2fc, LR=RWX@0x1206e308[libdexjni.so]0x6e308

5. Memory READ at 0x134d1090, data size = 8, data value = 0x0000000043d7741f, PC=RWX@0x1206e2fc[libdexjni.so]0x6e2fc, LR=RWX@0x1206e308[libdexjni.so]0x6e308

6. Memory READ at 0x134d1098, data size = 8, data value = 0x000000000130f889, PC=RWX@0x1206e2fc[libdexjni.so]0x6e2fc, LR=RWX@0x1206e308[libdexjni.so]0x6e308

7. g_method_list2：0x2d

8. JNIEnv->FindClass(android/app/Activity) was called from RWX@0x12062f3c[libdexjni.so]0x62f3c

9. JNIEnv->GetMethodID(android/app/Activity.finish()V) => 0xa8352854 was called from RWX@0x120327b4[libdexjni.so]0x327b4

10. Memory READ at 0x134d1090, data size = 8, data value = 0x0000000043d7741f, PC=RWX@0x12055a5c[libdexjni.so]0x55a5c, LR=RWX@0x1204bc14[libdexjni.so]0x4bc14

11. JNIEnv->CallVoidMethodA(android.app.Activity@43d7741f, finish()) was called from RWX@0x1205eec8[libdexjni.so]0x5eec8

复制代码

1. 字节码：4D 5B 10 00 2D 00 48 1E 02 00 1C 66

2. 0x5b4d分析前面已经给出

3. Smali：invoke-virtual {p0}, Landroid/app/Activity;->finish()V

复制代码

第十条指令：
trace：

1. Memory READ at 0x120bc770, data size = 8, data value = 0x0000000012065708, PC=RWX@0x12052584[libdexjni.so]0x52584, LR=RWX@0x1205f1cc[libdexjni.so]0x5f1cc

复制代码

1. 字节码：A8 47 F4 62

2. 0x47a8 -> opcode：return-void

3. 0x62f4 -> padding

4. Smali：return-void

复制代码

所以这个函数还原下来就是：

1. const-string v0, "BlankActivity"

2. const-string v1, "onCreate"

3. invoke-static {v0, v1}, Lcom/albert/xchatkit/d;->b(Ljava/lang/String;Ljava/lang/String;)V

4. invoke-super {p0, p1}, Landroid/app/Activity;->onCreate(Landroid/os/Bundle;)V;

5. invoke-virtual {p0}, Landroid/app/Activity;->getWindow()Landroid/view/Window;

6. move-result-object p1

7. const v0, 0x00280400

8. invoke-virtual {p1, v0}, Landroid/view/Window;->addFlags(I)V

9. invoke-virtual {p0}, Landroid/app/Activity;->finish()V

10. return-void

复制代码

因为所选函数本身比较简单，所以还原起来并不复杂，如果包含一些跳转指令的话也许会复杂一些，不过大概原理应该就是这些啦.


总结
整个运行流程还是比较常规的，解压释放text代码段，JNI_OnLoad初始化全部vm数据并注册跳板函数，跳板函数通过idx查数据进行一些初始化进入解释器解释执行.
比较有意思的就是vm的字节码进行了一些魔改，好像每个指令长度都变成了之前的两倍（不确定，但帖子中见到的都符合），添加了很多用于对齐的随机数据，是我见到的第一个魔改了指令结构的dex vmp.

大概是对这个vmp的整体进行了一通简单的分析，不过因为控制流以及自身能力的缘故，可能有很多东西我没能看到，就交给其他大佬来作补充吧~

秋菱

注：本人原创帖子，在吾爱看雪都有发，考虑到论坛这边还没有一篇关于vmp的帖子，所以顺便往这里也发一份，不要说什么图片水印乱七八糟的东西

完整帖已上传，但感觉有点bug会吞东西，如果有什么地方缺了说一声

紫檀

太酷啦

WZTong

围观膜拜（白嫖）大佬！

ayang168

感谢大佬分享！

傅

大佬牛逼

Flash丶光芒

看看大佬分析dexvm

你的名字221

还原这种VMP的前提还是dexlib2指令集规范要先背好:ImmutableMethodReference methodRef = new ImmutableMethodReference(
    "Lcom/albert/xchatkit/d;",
    "b",
    ImmutableList.of(
        "Ljava/lang/String;",
        "Ljava/lang/String;"
    ),
    "V"
);


ImmutableInstruction35c instruction = new ImmutableInstruction35c(
    Opcode.INVOKE_STATIC,
    2,
    0,
    1,
    0,
    0,
    0,
    methodRef
);

哎哟你干嘛

围观大佬

dusheling

很详细，感谢分享，收藏一下

青春向上

围观大佬

辰夕

这个加固很神奇，如果开发者选了so保护的话，so会混淆然后下面会有b_a_n_c_l_e字符，这几个字符还是特殊字符，如果开发者没选择的话企业版相比普通版就多一个vmp（车来了，XYJSQ），迅雷这个属于特殊的企业版，不知道里面加什么了，没有vm，但是直接改会闪退而且没有闪退日志，还有一些企业版在so层还有校验，直接删会闪退同样没有闪退日志，神奇

缘遇

是bangbang企业加固吗

GoldApple1939

感谢分享

陈玉京

太强了
